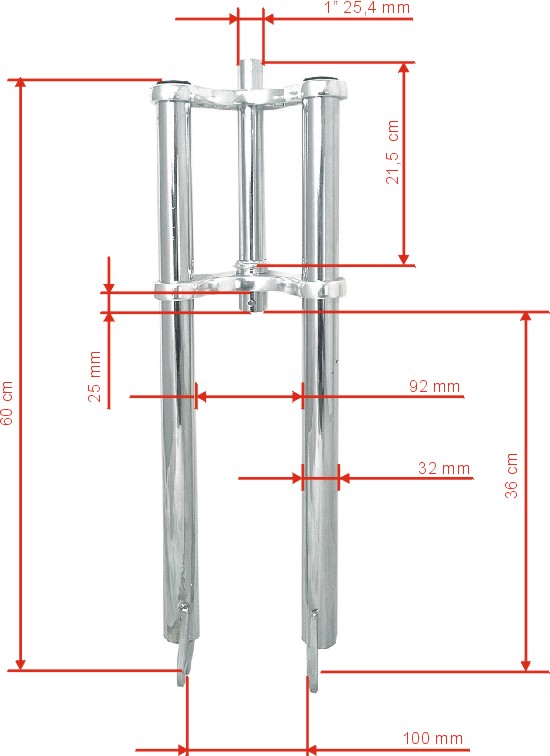

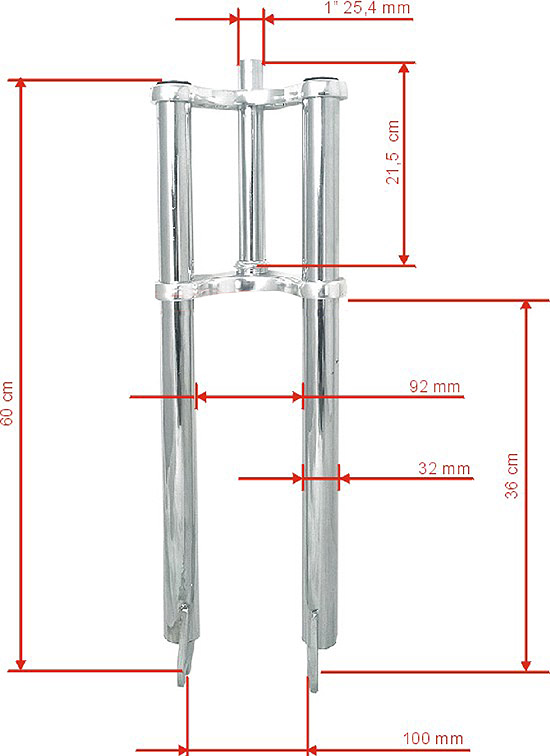

- Head Tube Ø 25,4 mm - 1"
( fits for 1-1/8" frames too after use adapter sleeve for headtube)
- Head Tube Length 21,5 cm AHEAD ( no thread)
- Overall Length 600 mm ( excl. headtube - only side pipes from axle - may be shortened )
- Side Tube Diameter Ø 32 mm
- Distance Between Drop Outs 100 mm
- Width at crown / width inside, in tire point 92 mm
- Disk Brake Mounts IS
- Tubes Made of Steel
- Bridges made out Aluminium
- Plastic Caps on Tubes
- Distance between fork crown and axle dropout ca. 36 cm
The Fork is NEW never used
The surface may have minimal technology and transport scratches on paint .
FOR PEOPLE WHO NEED PERFECT SURFACE WE RECOMMEND
ORDERING RAW PRODUCT FROM OUR OFFER AND PAINT IT LOCAL.
