Rims they fit 24", 26" - 50 , 65, 80, 100mm width

Bottom bracket US / BMX

Head Tube 1 1/8" Length 125 mm

Seatpost 31,8 mm

Rake Angle 61°

Disc mounts Yes

Coaster Brakes Holder Yes

Color Unpainted / Raw



Seattube to Headtube 865 mm

Seattube to Bottom Bracket 685 mm

Width between Chain stays 130 mm

Material Steel

Weight 6 kg

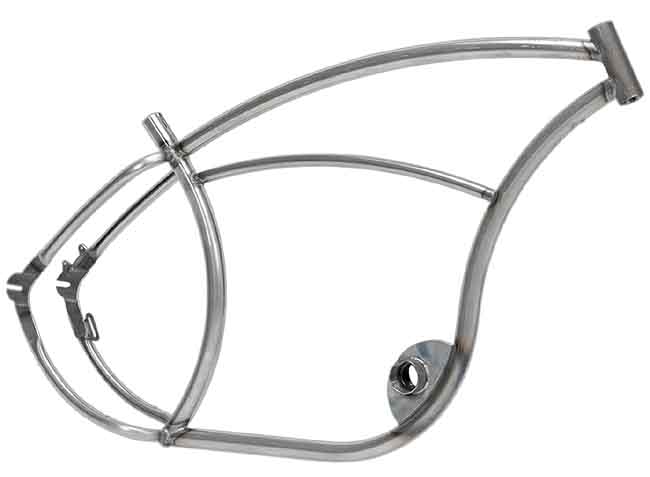

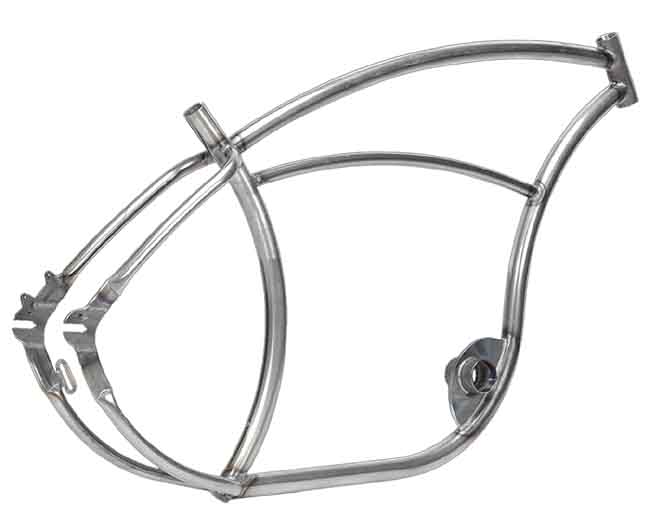

One of the most known and recognizable cruiser frame worldwide, the first sketches of the Basman were created in early 2004. The vision was to design a low profile frame that combines looks and comfort, and is also suitable for larger riders, as the designer himself is 1,90m tall. It immediately garnered attention in the scene as it unexpectedly won the „Cruiser of the year“ award in Amsterdam later that year, leaving well-known custom builders behind.

Characteristic of a PROJECT 346 design is the placement of the crank in the belly of the frame. The inspiration for this position of the motor comes from the old board track racers. Instead of using the motor to go forward, the human body becomes the engine.
